石英晶體振蕩器
- 編號：55958769
- 頻率：32.000MHz
- 尺寸：3.2x2.5mm
AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振
AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM8晶振，編碼為：ELM8-32.000MHz-10-D4Y-T，頻率為：32.000MHz，負載電容：10pF，小體積晶振尺寸：3.2x2.5mm封裝，S...
TXC,NDK,希華.jpg)
AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM8晶振，編碼為：ELM8-32.000MHz-10-D4Y-T，頻率為：32.000MHz，負載電容：10pF，小體積晶振尺寸：3.2x2.5mm封裝，SMD晶振，四腳貼片晶振，無源晶振，石英晶體諧振器，石英晶體，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。石英晶振，具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境等特點。被廣泛應用于：通訊設備，平板電腦，智能手機，無線網絡，藍牙模塊，汽車電子，車載控制器，導航儀，智能家居，物聯網，醫療設備，安防設備等應用。
格發TXC,NDK,希華.jpg)
AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振,參數表
| STANDARD SPECIFICATIONS | ||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||
| Frequency Range | 32.000MHz | |||||||||
|
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies) |
Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz) |
|||||||||
| Operating Temperature | -10°C to +60°C, see options | |||||||||
| Storage Temperature | -55°C to +125°C | |||||||||
| Frequency Tolerance @ 25°C | ± 50PPM, see options | |||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 50PPM, see options | |||||||||
| Equivalent Series Resistance (ESR) | See Table below | |||||||||
| Shunt Capacitance (C0) | 3.0 pF | |||||||||
| Load Capacitance (CL) | 18 pF, see options | |||||||||
| Drive Level |
10 μW Typ 100 μW |
|||||||||
| Aging (@ 25°C, First Year) | ±2ppm | |||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||
| Seal Method | Seam | |||||||||
| RoHS Compliant | Yes | |||||||||
| Pb Free | Yes | |||||||||
| MSL |
NA |
|||||||||

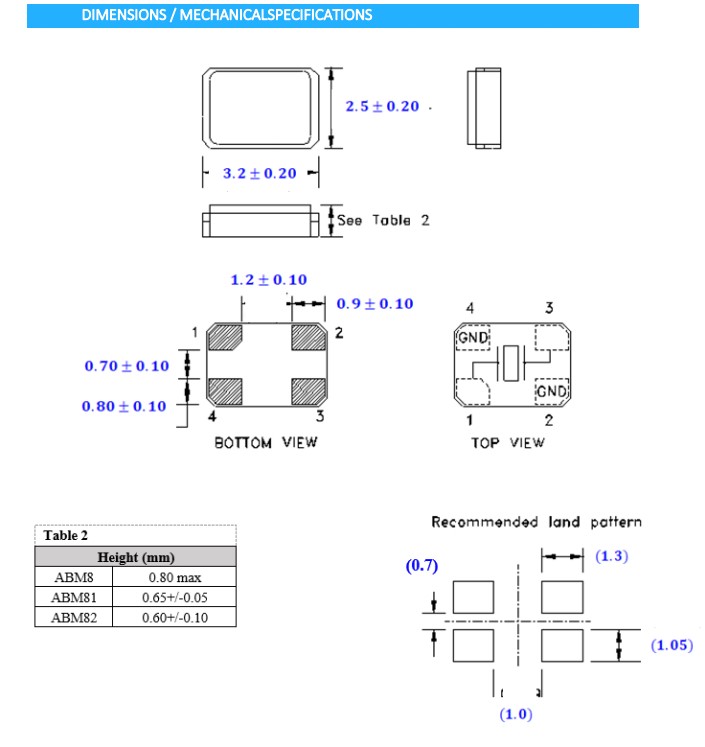

AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振,尺寸圖
AEL超小型晶振,ELM8-32.000MHz-10-D4Y-T,通信設備晶振
產品特點：
小型尺寸：3.2x2.5mm
SMD石英晶體諧振器
公差： ±10ppm可用
工作溫度-10°C至+60°C至-40°C至+125°C
格.JPG)
| 產品編碼 | 貼片晶振 | 頻率 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | 10 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | 12 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | 13.56 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | 30 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | 8 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | 16 MHz | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | 32 MHz | 2mm | 1.6mm | 0.5mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | 12 MHz | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | 14 MHz | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | 24 MHz | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | 8.057 MHz | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | 12 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | 12.5829 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | AEL晶振 | 14.8 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | 18.432 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | 進口晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | 26 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS06-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 2mm | 1.2mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 1.6mm | 1mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | 24 MHz | 1.6mm | 1.2mm | 0.4mm |
