石英晶體振蕩器
- 編號：38924113
- 頻率：32.768KHz
- 尺寸：2.0x1.2mm
ABS06-32.768KHZ-9-1-T,Abracon晶振,2012mm諧振器
ABS06-32.768KHZ-9-1-T,Abracon晶振,2012mm諧振器,ABS06,通訊設備晶振，美國進口晶振，Abracon艾博康晶振，型號：ABS06系列，編碼為：ABS06-32.768KHZ-9-1-T，頻率：32.768KHz，負載：9pF，精度：10ppm，工作溫度范圍...
.jpg)
ABS06-32.768KHZ-9-1-T,Abracon晶振,2012mm諧振器,ABS06,通訊設備晶振，美國進口晶振，Abracon艾博康晶振，型號：ABS06系列，編碼為：ABS06-32.768KHZ-9-1-T，頻率：32.768KHz，負載：9pF，精度：±10ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.0x1.2x0.6mm，兩腳貼片晶振，手表晶體，SMD晶振，石英晶振，鐘表晶振，石英晶體諧振器，具有超小型，輕薄型，高品質，高質量，耐熱及耐環境特點。廣泛使用于：智能手機，通信設備，測量設備，無線通信，商業和工業應用。
ABS06-32.768KHZ-9-1-T,Abracon晶振,2012mm諧振器,ABS06,通訊設備晶振，產品特點：
小型尺寸2.0 x 1.2 x 0.6mm，理想的高密度電路板
陶瓷包裝提供優良的環境和耐熱性，無源晶振
擴展溫度-55°C至+125°C
.jpg)
ABS06-32.768KHZ-9-1-T,Abracon晶振,2012mm諧振器,ABS06,通訊設備晶振,參數表
| Parameters | Minimum | Typical | Maximum | Units | Notes | ||||||||||||
| Frequency | 32.768 | kHz | |||||||||||||||
| Operation Mode | Flexural Mode (Tuning Fork) | ||||||||||||||||
| Operating Temperature | -40 | +85 | ºC | ||||||||||||||
| Storage Temperature | -55 | +125 | ºC | ||||||||||||||
| Frequency Tolerance @+25°C | -20 | +20 | ppm |
See options Tested at 0.5uW |
|||||||||||||
| Temperature Coefficient: | -0.04 | -0.03 | -0.02 | ppm/T² | |||||||||||||
| Turn-over temperature: | +20 | +25 | +30 | ºC | |||||||||||||
| Equivalent series resistance (R1) | 90 | k? | For -40 ~ +85°C option | ||||||||||||||
| 110 | k? |
For -40 ~ +125°C option & -55 ~ +125°C option |
|||||||||||||||
| Load capacitance (CL) | 12.5 | pF | See options | ||||||||||||||
| Drive Level | 0. 1 | 0.5 | µW | ||||||||||||||
| Q value | 9000 | ||||||||||||||||
| Aging@25°C±3°C | -3 | 3 | ppm | First year | |||||||||||||
| Insulation Resistance | 500 | M? | @ 100Vdc ± 15V | ||||||||||||||

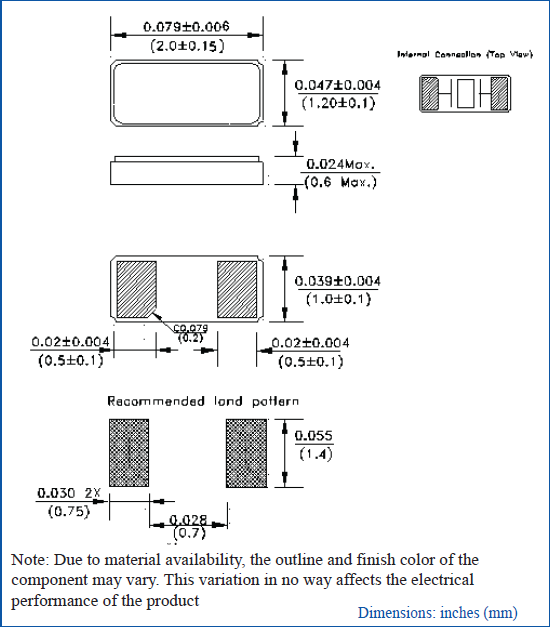

2012mm,ABS06-32.768KHZ-6-T,Abracon品牌,無線晶振,ABS06,石英晶體,尺寸圖
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | SMD晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
