石英晶體振蕩器
- 編號：19497459
- 頻率：48MHZ
- 尺寸：1.6*1.2mm
KXO-V93T,12.73004,Geyer晶振,48MHZ
KXO-V93T,12.73004,Geyer晶振,48MHZ,格耶晶振，微型晶振，石英晶體振蕩器，有源晶振，耐環境，耐熱特性，原廠代碼：12.73000，型號：KXO-V93T，尺寸：1.6*1.2mm，頻率：48MHZ，頻率偏差：30ppm，電壓：3.3V，運行溫度...
.jpg)
.jpg)

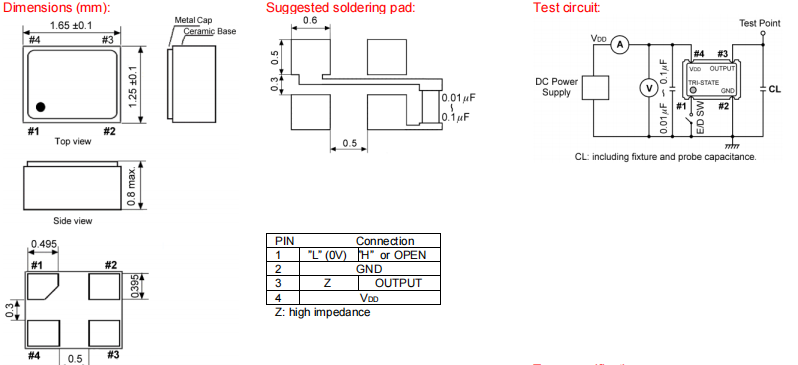

KXO-V93T,12.73004,Geyer晶振,48MHZ
| Model | KXO-V93T |
| Dimensions | 1.6 | 1.2 | 0.6 mm |
| Frequency | 48MHz |
| Temperature Tolerance | ± 30 ppm |
| Operating Temperature | -40°C to +85°C |
| Supply Voltage | +3.3 V ± 5% |
| Output Load | 15 pF HCMOS |
| Tristate Function | yes |
| AEC-Q200 | no |
| standard packaging unit | 5,000 pcs |
KXO-V93T,12.73004,Geyer晶振,48MHZ
格截圖.jpg)
| 原廠代碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 電壓 |
| 12.95582 | Geyer晶振 | KXO-V95 | 14.7456 MHz | ±50ppm | - |
| 12.95549 | Geyer晶振 | KXO-V95T | 32 MHz | ±50ppm | - |
| 12.95531 | Geyer晶振 | KXO-V95T | 3.6864 MHz | ±50ppm | - |
| 12.90328 | Geyer晶振 | KXO-V94T | 16 MHz | ±50ppm | 3.3V |
| 12.90321 | Geyer晶振 | KXO-V94 | 14.7456 MHz | ±50ppm | 3.3V |
| 12.95545 | Geyer晶振 | KXO-V95T | 20 MHz | ±50ppm | - |
| 12.95103 | Geyer晶振 | KXO-V96T | 32 MHz | ±50ppm | - |
| 12.9558 | Geyer晶振 | KXO-V95 | 3.579545 MHz | ±50ppm | - |
| 12.95094 | Geyer晶振 | KXO-V96T | 14.31818 MHz | ±50ppm | - |
| 12.95034 | Geyer晶振 | KXO-V96T | 20 MHz | ±50ppm | - |
| 12.95542 | Geyer晶振 | KXO-V95T | 12 MHz | ±50ppm | - |
| 12.94474 | Geyer晶振 | KXO-V97T | 27 MHz | ±100ppm | - |
| 12.90343 | Geyer晶振 | KXO-V94T | 12 MHz | ±50ppm | - |
| 12.90325 | Geyer晶振 | KXO-V94 | 3.6864 MHz | ±50ppm | 3.3V |
| 12.90311 | Geyer晶振 | KXO-V94 | 14.7456 MHz | ±100ppm | 3.3V |
| 12.95128 | Geyer晶振 | KXO-V96E | 27 MHz | ±50ppm | - |
| 12.95102 | Geyer晶振 | KXO-V96T | 80 MHz | ±50ppm | - |
| 12.90333 | Geyer晶振 | KXO-V94T | 40 MHz | ±50ppm | - |
| 12.90337 | Geyer晶振 | KXO-V94T | 26 MHz | ±50ppm | - |
| 12.94273 | Geyer晶振 | KXO-V97T | 32 MHz | ±100ppm | - |
| 12.94365 | Geyer晶振 | KXO-V97T | 14.31818 MHz | ±100ppm | - |
| 12.95546 | Geyer晶振 | KXO-V95T | 26 MHz | ±50ppm | - |
| 12.92106 | Geyer晶振 | KXO-V97T | 65 MHz | ±100ppm | - |
| 12.95571 | Geyer晶振 | KXO-V95T | 32.768 kHz | ±30ppm | - |
| 12.90344 | Geyer晶振 | KXO-V94T | 4 MHz | ±50ppm | - |
| 12.95538 | Geyer晶振 | KXO-V95 | 27.12 MHz | ±50ppm | - |
| 12.94364 | Geyer晶振 | KXO-V97T | 48 MHz | ±100ppm | - |
| 12.95568 | Geyer晶振 | KXO-V95F | 48 MHz | ±50ppm | - |
| 12.90324 | Geyer晶振 | KXO-V94 | 27 MHz | ±50ppm | 3.3V |
| 12.94609 | Geyer晶振 | KXO-V99 | 1 MHz | ±50ppm | - |
| 12.95101 | Geyer晶振 | KXO-V96T | 48 MHz | ±50ppm | - |
| 12.92146 | Geyer晶振 | KXO-V97T | 22.1184 MHz | ±100ppm | - |
| 12.90327 | Geyer晶振 | KXO-V94T | 48 MHz | ±50ppm | 3.3V |
| 12.95091 | Geyer晶振 | KXO-V96T | 10 MHz | ±50ppm | - |
| 12.94449 | Geyer晶振 | KXO-V97T | 18.432 MHz | ±100ppm | - |
| 12.94456 | Geyer晶振 | KXO-V97T | 3.6864 MHz | ±100ppm | - |
| 12.95551 | Geyer晶振 | KXO-V95T | 48 MHz | ±50ppm | - |
| 12.90322 | Geyer晶振 | KXO-V94T | 20 MHz | ±50ppm | 3.3V |
| 12.95524 | Geyer晶振 | KXO-V95E | 25 MHz | ±100ppm | - |
| 12.9034 | Geyer晶振 | KXO-V94T | 32.768 kHz | ±20ppm | - |
| 12.95543 | Geyer晶振 | KXO-V95T | 14.31818 MHz | ±50ppm | - |
| 12.95104 | Geyer晶振 | KXO-V96-18 | 32.768 kHz | ±50ppm | - |
| 12.94422 | Geyer晶振 | KXO-V97T | 11.0592 MHz | ±100ppm | - |
| 12.95548 | Geyer晶振 | KXO-V95T | 4 MHz | ±50ppm | - |
| 12.90307 | Geyer晶振 | KXO-V94 | 1.8432 MHz | ±50ppm | 3.3V |
