石英晶體振蕩器
- 編號：88430759
- 頻率：3.6864MHZ
- 尺寸：2.0*1.6mm
12.90325,Geyer晶振,KXO-V94,3.6864MHz,2*1.6mm
12.90325,Geyer晶振,KXO-V94,3.6864MHz,2*1.6mm，格耶晶振，尺寸2.0*1.6mm，原廠編碼：12.90325，型號：KXO-V94，四腳貼片晶振，進口晶振，石英晶體振蕩器，貼片石英晶振，有源晶振，電壓為3.3V，運行溫度-40℃至85℃...
.jpg)
12.90325,Geyer晶振,KXO-V94,3.6864MHz,2*1.6mm，格耶晶振，尺寸2.0*1.6mm，原廠編碼：12.90325，型號：KXO-V94，四腳貼片晶振，進口晶振，石英晶體振蕩器，貼片石英晶振，有源晶振，電壓為3.3V，運行溫度-40℃至85℃，頻率偏差為±50ppm，屬于超小型晶振，輕薄型晶振，耐熱耐環境特點，可運用于電子汽車，便捷式設備晶振，藍牙晶振，數碼產品等，
.jpg)
12.90325,Geyer晶振,KXO-V94,3.6864MHz,2*1.6mm
| part no. | 12.90325 | |||||||||
| model | KXO-V94 | |||||||||
| frequency range | 1.0 ~ 160.0 MHz | |||||||||
|
frequency stability at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C; -40° ~ +125°C |
±25 ±30 |
ppm, ppm; |
±50 ±50 |
ppm ppm |
||||||
| operating temperature range |
standard -20° ~ +70°C available -40° ~ +85°C (=KXO-V94T); -40° ~ +105°C (=KXO-V94E); -40° ~ +125°C (=KXO-V94F) |
|||||||||
| storage temperature range | -55° ~ +125°C | |||||||||
| supply voltage range | -0.3 V ~ +4.0 V | |||||||||
| supply voltage VDD | +1.8 V DC ±5 %, +2.5 V DC ±5 %, +2.8 V DC ±5 %, +3.0 V DC ±5 % or +3.3 V DC ±5 % | |||||||||
|
supply current max. |
+1.8 V | +2.5 V / +2.8 V | +3.0 V / +3.3 V | |||||||
| 1.0 ~19.9 MHz | 5.0 mA | 7.0 mA | 7.0 mA | |||||||
| 20.0 ~ 39.9 MHz | 7.0 mA | 9.0 mA | 10.0 mA | |||||||
| 40.0 ~ 59.9 MHz | 12.0 mA | 13.0 mA | 15.0 mA | |||||||
| 60.0 ~ 99.9 MHz | 15.0 mA | 18.0 mA | 20.0 mA | |||||||
| 100.0 ~ 160.0 MHz | 20.0 mA | 25.0 mA | 30.0 mA | |||||||
| symmetry | 45 % ~ 55 % at 50 % VDD level | |||||||||
| rise & fall time max. |
8 ns (10 % VDD ~ 90 % VDD level)/VDD = +1.8 V 5 ns (10 % VDD ~ 90 % VDD level)/VDD = +2.5 V, +2.8 V, +3.0 V, +3.3 V |
|||||||||
| "O" level max.; "1" level min. | VOL: 10 % VDD ; VOH: 90 % VDD | |||||||||
| tri-state control voltage (Pin#1) | VIH: VDD x 0.7 min.; VIL: VDD x 0.3 max. | |||||||||
| output load max. | 15pF HCMOS | |||||||||
| start up time max. | 10 ms | |||||||||
| disable/enable delay time max | 150 ns / 10 ms | |||||||||
| stand by current max. | 10 μA (Pin #1=VIL) | |||||||||

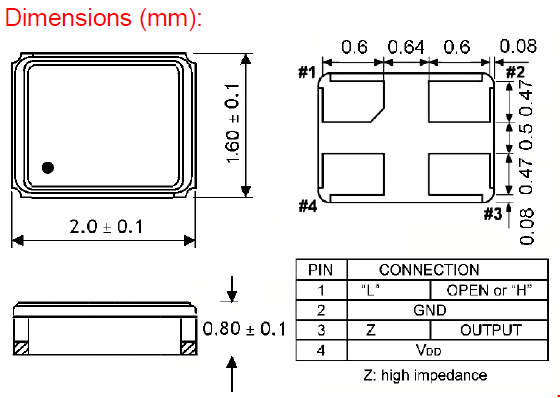

12.90325,Geyer晶振,KXO-V94,3.6864MHz,2*1.6mm
.png)
| 原廠代碼 | 品牌 | 參數描述 | 型號 | 頻率 |
| Mfr Part # | Mfr | Description | Series | Frequency |
| 12.95582 | Geyer晶振 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 | 14.7456 MHz |
| 12.95549 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T | 32 MHz |
| 12.95531 | Geyer晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T | 3.6864 MHz |
| 12.90328 | Geyer晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T | 16 MHz |
| 12.90321 | Geyer晶振 | 石英晶體振蕩器 | KXO-V94 | 14.7456 MHz |
| 12.95545 | Geyer晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T | 20 MHz |
| 12.95103 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T | 32 MHz |
| 12.9558 | Geyer晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 | 3.579545 MHz |
| 12.95094 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T | 14.31818 MHz |
| 12.95034 | Geyer晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T | 20 MHz |
| 12.95542 | Geyer晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T | 12 MHz |
| 12.94474 | Geyer晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T | 27 MHz |
| 12.90343 | Geyer晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T | 12 MHz |
| 12.90325 | Geyer晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 | 3.6864 MHz |
| 12.90311 | Geyer晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 | 14.7456 MHz |
| 12.95128 | Geyer晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E | 27 MHz |
| 12.95102 | Geyer晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T | 80 MHz |
| 12.90333 | Geyer晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T | 40 MHz |
| 12.90337 | Geyer晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T | 26 MHz |
| 12.94273 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T | 32 MHz |
| 12.94365 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T | 14.31818 MHz |
| 12.95546 | Geyer晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T | 26 MHz |
| 12.92106 | Geyer晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T | 65 MHz |
| 12.95571 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T | 32.768 kHz |
| 12.90344 | Geyer晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T | 4 MHz |
| 12.95538 | Geyer晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 | 27.12 MHz |
| 12.94364 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T | 48 MHz |
| 12.95568 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F | 48 MHz |
| 12.90324 | Geyer晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 | 27 MHz |
| 12.94609 | Geyer晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 | 1 MHz |
| 12.95101 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T | 48 MHz |
| 12.92146 | Geyer晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T | 22.1184 MHz |
| 12.90327 | Geyer晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T | 48 MHz |
| 12.95091 | Geyer晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T | 10 MHz |
| 12.94449 | Geyer晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T | 18.432 MHz |
| 12.94456 | Geyer晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T | 3.6864 MHz |
| 12.95551 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T | 48 MHz |
| 12.90322 | Geyer晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T | 20 MHz |
| 12.95524 | Geyer晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E | 25 MHz |
| 12.9034 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T | 32.768 kHz |
| 12.95543 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T | 14.31818 MHz |
| 12.95104 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 | 32.768 kHz |
| 12.94422 | Geyer晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T | 11.0592 MHz |
| 12.95548 | Geyer晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T | 4 MHz |
| 12.90307 | Geyer晶振 | XTAL OSC XO 1.8432MHZ HCMOS SMD | KXO-V94 | 1.8432 MHz |
