- 編號：41878341
- 頻率：14.7456MKZ
- 尺寸：2.5*2.0mm
12.95582,Geyer晶振,14.7456MHz,KXO-V95,2520mm
12.95582,Geyer晶振,14.7456MHz,KXO-V95,進口晶振，尺寸2.5*2mm，格耶晶振，型號為：KXO-V95，編碼：12.95582，頻率：14.7456MHz，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，工...
.jpg)
12.95582,Geyer晶振,14.7456MHz,KXO-V95,2520mm,進口晶振，尺寸2.5*2mm，格耶晶振，型號為：KXO-V95，編碼：12.95582，頻率：14.7456MHz，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，具有超小型晶振，輕薄型晶振，工作溫度范圍：-40℃至+85℃，耐環境耐熱特點，應用于電信晶振，汽車電子晶振，無限網絡晶振等，
.jpg)

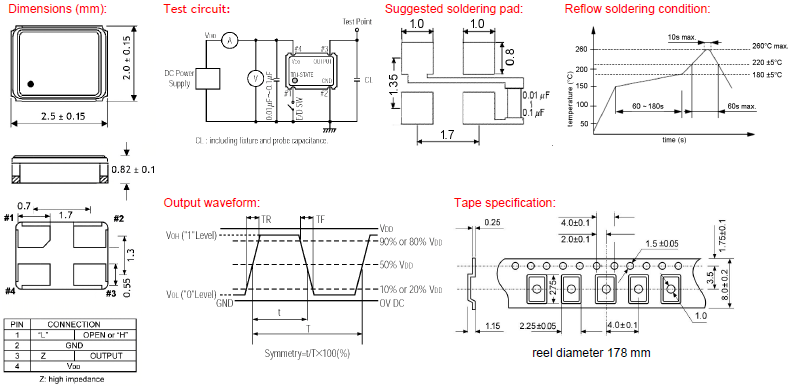

12.95582,Geyer晶振,14.7456MHz,KXO-V95,2520mm
| part no. | 12.95582 | |||||||||
| model | KXO-V95 | |||||||||
| frequency range | 1.0 ~ 160.0 MHz | |||||||||
|
frequency stability at -20° ~ +70°C; -40° ~ +85°C -40° ~ +105°C; -40° ~ +125°C |
±25 ±30 |
ppm, ppm; |
±50 ±50 |
ppm ppm |
||||||
| operating temperature range |
standard -20° ~ +70°C available -40° ~ +85°C (= KXO-V95T); -40° ~ +105°C (= KXO-V95E); -40° ~ +125°C (= KXO-V95F) |
|||||||||
| storage temperature range | -55° ~ +125°C | |||||||||
| supply voltage range | -0.3 V ~ +4.0 V | |||||||||
| supply voltage VDD | +1.8 V DC ±5 %, +2.5 V DC ±5 %, +2.8 V DC ±5 %, +3.0 V DC ±5 % or +3.3 V DC ±5 % | |||||||||
|
supply current max. |
+1.8 V | +2.5 V / +2.8 V | +3.0 V / +3.3 V | |||||||
| 1.0 ~ 20.0MHz | 5.0 mA | 6.0 mA | 6.0 mA | |||||||
| 20.1 ~ 50.0MHz | 6.0 mA | 9.0 mA | 10.0 mA | |||||||
| 50.1 ~ 70.0MHz | 11.0 mA | 11.0 mA | 15.0 mA | |||||||
| 70. 1 ~ 100.0 MHz | 15.0 mA | 16.0 mA | 18.0 mA | |||||||
| 100.0 ~ 160.0 MHz | 18.0 mA | 20.0 mA | 22.0 mA | |||||||
| symmetry | 45 % ~ 55 % at 50 % VDD level | |||||||||
| rise & fall time max. |
8 ns (10 % VDD ~ 90 % VDD level)/VDD = +1.8 V 5 ns (10 % VDD ~ 90 % VDD level)/VDD = +2.5 V, +2.8 V, +3.0 V, +3.3 V |
|||||||||
| "O" level max.; "1" level min. | VOL: 10 % VDD ; VOH: 90 % VDD | |||||||||
| tri-state control voltage (Pin#1) | VIH: VDD x 0.7 min.; VIL: VDD x 0.3 max. | |||||||||
| output load max. | 15pF HCMOS | |||||||||
| start up time max. | 10 ms | |||||||||
| disable/enable delay time max | 150 ns / 10 ms | |||||||||
| stand by current max. | 50 μA (Pin #1=VIL) | |||||||||
| contents of reel | 1000 pcs. / 3000 pcs. | |||||||||
12.95582,Geyer晶振,14.7456MHz,KXO-V95,2520mm
| Mfr Part # | Mfr | Description | Series |
| 12.95582 | Geyer晶振 | XTAL OSC XO 14.7456MHZ SMD | KXO-V95 |
| 12.95549 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V95T |
| 12.95531 | Geyer晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V95T |
| 12.90328 | Geyer晶振 | XTAL OSC XO 16.0000MHZ CMOS SMD | KXO-V94T |
| 12.90321 | Geyer晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 |
| 12.95545 | Geyer晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V95T |
| 12.95103 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V96T |
| 12.9558 | Geyer晶振 | XTAL OSC XO 3.579545MHZ SMD | KXO-V95 |
| 12.95094 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V96T |
| 12.95034 | Geyer晶振 | XTAL OSC XO 20.0000MHZ SMD | KXO-V96T |
| 12.95542 | Geyer晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V95T |
| 12.94474 | Geyer晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V97T |
| 12.90343 | Geyer晶振 | XTAL OSC XO 12.0000MHZ SMD | KXO-V94T |
| 12.90325 | Geyer晶振 | XTAL OSC XO 3.6864MHZ HCMOS SMD | KXO-V94 |
| 12.90311 | Geyer晶振 | XTAL OSC XO 14.7456MHZ HCMOS SMD | KXO-V94 |
| 12.95128 | Geyer晶振 | XTAL OSC XO 27.0000MHZ SMD | KXO-V96E |
| 12.95102 | Geyer晶振 | XTAL OSC XO 80.0000MHZ SMD | KXO-V96T |
| 12.90333 | Geyer晶振 | XTAL OSC XO 40.0000MHZ SMD | KXO-V94T |
| 12.90337 | Geyer晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V94T |
| 12.94273 | Geyer晶振 | XTAL OSC XO 32.0000MHZ SMD | KXO-V97T |
| 12.94365 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V97T |
| 12.95546 | Geyer晶振 | XTAL OSC XO 26.0000MHZ SMD | KXO-V95T |
| 12.92106 | Geyer晶振 | XTAL OSC XO 65.0000MHZ SMD | KXO-V97T |
| 12.95571 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V95T |
| 12.90344 | Geyer晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V94T |
| 12.95538 | Geyer晶振 | XTAL OSC XO 27.1200MHZ SMD | KXO-V95 |
| 12.94364 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V97T |
| 12.95568 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95F |
| 12.90324 | Geyer晶振 | XTAL OSC XO 27.0000MHZ HCMOS SMD | KXO-V94 |
| 12.94609 | Geyer晶振 | XTAL OSC XO 1.0000MHZ SMD | KXO-V99 |
| 12.95101 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V96T |
| 12.92146 | Geyer晶振 | XTAL OSC XO 22.1184MHZ SMD | KXO-V97T |
| 12.90327 | Geyer晶振 | XTAL OSC XO 48.0000MHZ HCMOS SMD | KXO-V94T |
| 12.95091 | Geyer晶振 | XTAL OSC XO 10.0000MHZ SMD | KXO-V96T |
| 12.94449 | Geyer晶振 | XTAL OSC XO 18.4320MHZ SMD | KXO-V97T |
| 12.94456 | Geyer晶振 | XTAL OSC XO 3.6864MHZ SMD | KXO-V97T |
| 12.95551 | Geyer晶振 | XTAL OSC XO 48.0000MHZ SMD | KXO-V95T |
| 12.90322 | Geyer晶振 | XTAL OSC XO 20.0000MHZ CMOS SMD | KXO-V94T |
| 12.95524 | Geyer晶振 | XTAL OSC XO 25.0000MHZ SMD | KXO-V95E |
| 12.9034 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V94T |
| 12.95543 | Geyer晶振 | XTAL OSC XO 14.31818MHZ SMD | KXO-V95T |
| 12.95104 | Geyer晶振 | XTAL OSC XO 32.7680KHZ SMD | KXO-V96-18 |
| 12.94422 | Geyer晶振 | XTAL OSC XO 11.0592MHZ SMD | KXO-V97T |
| 12.95548 | Geyer晶振 | XTAL OSC XO 4.0000MHZ SMD | KXO-V95T |
| 12.90307 | Geyer晶振 | XTAL OSC XO 1.8432MHZ HCMOS SMD | KXO-V94 |
