- 編號：40696162
- 頻率：25.0000MHz
- 尺寸：3.2x2.5mm
IQD小體積貼片晶振,LFXTAL056055REEL,CFPX-180,車載導航6G晶振
IQD小體積貼片晶振,LFXTAL056055REEL,CFPX-180,車載導航6G晶振LFXTAL062461REEL,3225石英晶振，IQD伊克德晶振，進口晶振，型號：CFPX-180，編碼為：LFXTAL056055REEL，頻率：25.0000MHz18PFSMD石英晶體，小體積晶振尺...

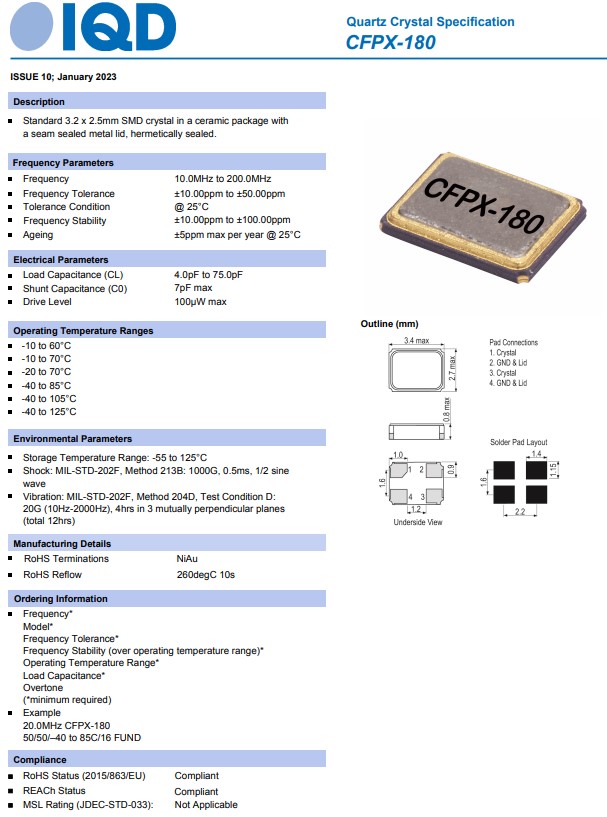

IQD小體積貼片晶振,LFXTAL056055REEL,CFPX-180,車載導航6G晶振LFXTAL062461REEL,3225石英晶振，IQD伊克德晶振，進口晶振，型號：CFPX-180，編碼為：LFXTAL056055REEL，頻率：25.0000MHz 18PF SMD石英晶體，小體積晶振尺寸：3.2x2.5mm，標準3.2 x 2.5mm SMD晶體在陶瓷包裝，接縫密封金屬蓋，密封。四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，較寬的工作溫度范圍，具有超小型，輕薄型，耐熱及耐環保特點。應用于：通訊設備，無線網絡，藍牙模塊，平板電腦，儀器儀表設備，汽車電子，車載導航，安防設備，醫療設備，導航儀，數碼電子等應用。

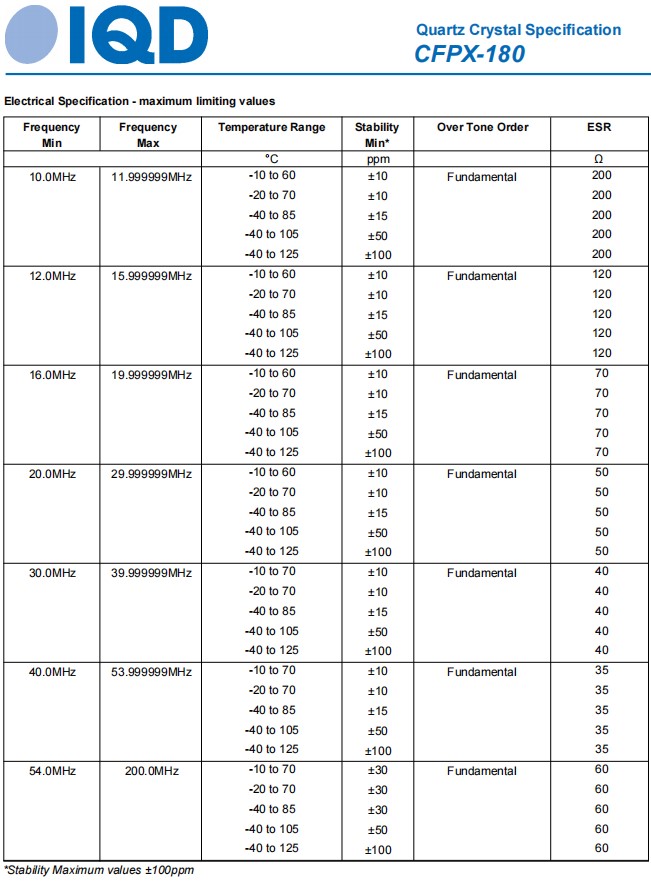

IQD小體積貼片晶振,LFXTAL056055REEL,CFPX-180,車載導航6G晶振LFXTAL062461REEL,3225石英晶振,參數表
| Frequency Parameters | |
| Frequency | 25.000MHz |
| Frequency Tolerance | ±10.00ppm to ±50.00ppm |
| Tolerance Condition | @ 25℃ |
| Frequency Stability | ±10.00ppm to ±100.00ppm |
| Ageing | ±5ppm max per year @ 25℃ |
| Electrical Parameters | |
| Load Capacitance (CL) | 4.0pF to 75.0pF |
| Shunt Capacitance (C0) | 7pF max |
| Drive Level | 100uW max |
| Operating Temperature Ranges | -10 to 60℃ |
| -10 to 70℃ | |
| -20 to 70℃ | |
| -40 to 85℃ | |
| -40 to 105℃ | |
| -40 to 125℃ |

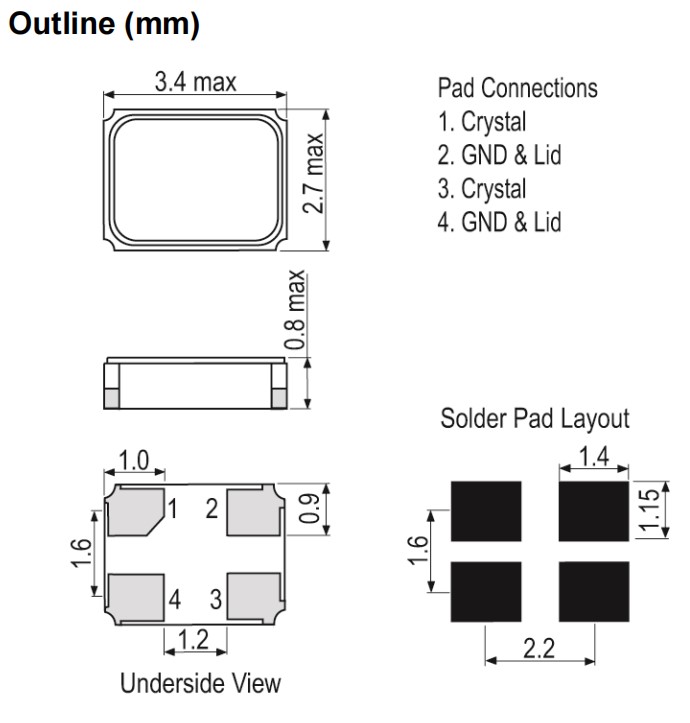

IQD小體積貼片晶振,LFXTAL056055REEL,CFPX-180,車載導航6G晶振LFXTAL062461REEL,3225石英晶振,尺寸圖
| 制造商零件編碼 | 制造商 | 系列 | 石英晶體諧振器 | 頻率 |
| LFXTAL082071RL3K | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 8PF SMD | 16 MHz |
| LFXTAL059646REEL | IQD晶振 | CFPX-180 | CRYSTAL 30.0000MHZ 18PF SMD | 30 MHz |
| LFXTAL082070REEL | IQD晶振 | CFPX-180 | CRYSTAL 13.5600MHZ 8PF SMD | 13.56 MHz |
| LFXTAL035267REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.5760MHZ 16PF SMD | 24.576 MHz |
| LFXTAL055293REEL | IQD晶振 | CFPX-180 | CRYSTAL 14.7456MHZ 18PF SMD | 14.7456 MHz |
| LFXTAL082074REEL | IQD晶振 | CFPX-180 | CRYSTAL 27.0000MHZ 8PF SMD | 27 MHz |
| LFXTAL064296REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 8PF SMD | 16 MHz |
| LFXTAL035268REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz |
| LFXTAL059615REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.3840MHZ 18PF SMD | 16.384 MHz |
| LFXTAL082076REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 8PF SMD | 32 MHz |
| LFXTAL059815REEL | IQD晶振 | CFPX-180 | CRYSTAL 27.1200MHZ 10PF SMD | 27.12 MHz |
| LFXTAL056346REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL083388RL3K | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 12PF SMD | 12 MHz |
| LFXTAL078382REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz |
| LFXTAL056055REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL055297REEL | IQD晶振 | CFPX-180 | CRYSTAL 13.0000MHZ 18PF SMD | 13 MHz |
| LFXTAL069944REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 15PF SMD | 12 MHz |
| LFXTAL035264REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz |
| LFXTAL055951REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 18PF SMD | 16 MHz |
| LFXTAL035265REEL | IQD晶振 | CFPX-180 | CRYSTAL 20.0000MHZ 16PF SMD | 20 MHz |
| LFXTAL062461REEL | IQD晶振 | CFPX-180 | CRYSTAL 27.1200MHZ 10PF SMD | 27.12 MHz |
| LFXTAL060258REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 10PF SMD | 32 MHz |
| LFXTAL083387RL3K | IQD晶振 | CFPX-180 | CRYSTAL 10.0000MHZ 12PF SMD | 10 MHz |
| LFXTAL061677REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 12PF SMD | 32 MHz |
| LFXTAL058124REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL082078REEL | IQD晶振 | CFPX-180 | CRYSTAL 50.0000MHZ 8PF SMD | 50 MHz |
| LFXTAL059638REEL | IQD晶振 | CFPX-180 | CRYSTAL 20.0000MHZ 18PF SMD | 20 MHz |
| LFXTAL082069RL3K | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 8PF SMD | 12 MHz |
| LFXTAL059643REEL | IQD晶振 | CFPX-180 | CRYSTAL 26.0000MHZ 18PF SMD | 26 MHz |
| LFXTAL082077REEL | IQD晶振 | CFPX-180 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL055474REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 16PF SMD | 25 MHz |
| LFXTAL083138RL3K | IQD晶振 | CFPX-180 | CRYSTAL 8.0000MHZ 12PF SMD | 8 MHz |
| LFXTAL058637RL3K | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 12PF SMD | 25 MHz |
| LFXTAL059611RL3K | IQD晶振 | CFPX-180 | CRYSTAL 13.5600MHZ 18PF SMD | 13.56 MHz |
| LFXTAL072604REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 8PF SMD | 25 MHz |
| LFXTAL069882REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 10PF SMD | 12 MHz |
| LFXTAL053866REEL | IQD晶振 | CFPX-180 | CRYSTAL 48.0000MHZ 18PF SMD | 48 MHz |
| LFXTAL083408RL3K | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 12PF SMD | 25 MHz |
| LFXTAL068911REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL083407RL3K | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 12PF SMD | 24 MHz |
| LFXTAL057997REEL | IQD晶振 | CFPX-180 | 16.0000MHZ 10PF 無源晶振 | 16 MHz |
| LFXTAL057824REEL | IQD晶振 | CFPX-180 | CRYSTAL 27.0000MHZ 18PF SMD | 27 MHz |
| LFXTAL082075REEL | IQD晶振 | CFPX-180 | CRYSTAL 30.0000MHZ 8PF SMD | 30 MHz |
| LFXTAL072787REEL | IQD晶振 | CFPX-180 | CRYSTAL 50.0000MHZ 18PF SMD | 50 MHz |
| LFXTAL055299REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL082071REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 8PF SMD | 16 MHz |
| LFXTAL059613REEL | IQD晶振 | CFPX-180 | CRYSTAL 14.31818MHZ 18PF SMD | 14.31818 MHz |
| LFXTAL061647REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 12PF SMD | 12 MHz |
| LFXTAL070065REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 9PF SMD | 24 MHz |
| LFXTAL058149RL3K | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 10PF SMD | 24 MHz |
| LFXTAL082072REEL | IQD晶振 | CFPX-180 | CRYSTAL 20.0000MHZ 8PF SMD | 20 MHz |
| LFXTAL054208RL3K | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 10PF SMD | 12 MHz |
| LFXTAL059575REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.5760MHZ 18PF SMD | 24.576 MHz |
| LFXTAL035269REEL | IQD晶振 | CFPX-180 | CRYSTAL 30.0000MHZ 16PF SMD | 30 MHz |
| LFXTAL035503REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.3840MHZ 16PF SMD | 16.384 MHz |
| LFXTAL069377REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 18PF SMD | 32 MHz |
| LFXTAL060843REEL | IQD晶振 | CFPX-180 | CRYSTAL 50.0000MHZ 10PF SMD | 50 MHz |
| LFXTAL035266REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 16PF SMD | 24 MHz |
| LFXTAL059666REEL | IQD晶振 | CFPX-180 | CRYSTAL 26.0000MHZ 10PF SMD | 26 MHz |
| LFXTAL055316REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz |
| LFXTAL075672REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 10PF SMD | 12 MHz |
| LFXTAL061673REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 12PF SMD | 24 MHz |
| LFXTAL063321REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 18PF SMD | 25 MHz |
| LFXTAL035522REEL | IQD晶振 | CFPX-180 | CRYSTAL 32.0000MHZ 9PF SMD | 32 MHz |
| LFXTAL055295REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL064703REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 18PF SMD | 24 MHz |
| LFXTAL078781RL3K | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 12PF SMD | 16 MHz |
| LFXTAL061070REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL053099REEL | IQD晶振 | CFPX-180 | CRYSTAL 27.1200MHZ 10PF SMD | 27.12 MHz |
| LFXTAL009650REEL | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz |
| LFXTAL059648REEL | IQD晶振 | CFPX-180 | CRYSTAL 40.0000MHZ 18PF SMD | 40 MHz |
| LFXTAL055962REEL | IQD晶振 | CFPX-180 | CRYSTAL 30.0000MHZ 12PF SMD | 30 MHz |
| LFXTAL059800REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 10PF SMD | 25 MHz |
| LFXTAL082073REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 8PF SMD | 24 MHz |
| LFXTAL083409RL3K | IQD晶振 | CFPX-180 | CRYSTAL 26.0000MHZ 12PF SMD | 26 MHz |
| LFXTAL071177REEL | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 9PF SMD | 24 MHz |
| LFXTAL051068REEL | IQD晶振 | CFPX-180 | CRYSTAL 25.0000MHZ 9PF SMD | 25 MHz |
| LFXTAL070868REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 18PF SMD | 12 MHz |
| LFXTAL059617REEL | IQD晶振 | CFPX-180 | CRYSTAL 18.4320MHZ 18PF SMD | 18.432 MHz |
| LFXTAL082072RL3K | IQD晶振 | CFPX-180 | CRYSTAL 20.0000MHZ 8PF SMD | 20 MHz |
| LFXTAL082073RL3K | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 8PF SMD | 24 MHz |
| LFXTAL082075RL3K | IQD晶振 | CFPX-180 | CRYSTAL 30.0000MHZ 8PF SMD | 30 MHz |
| LFXTAL062461RL3K | IQD晶振 | CFPX-180 | CRYSTAL 27.1200MHZ 10PF SMD | 27.12 MHz |
| LFXTAL082078RL3K | IQD晶振 | CFPX-180 | CRYSTAL 50.0000MHZ 8PF SMD | 50 MHz |
| LFXTAL059815RL3K | IQD晶振 | CFPX-180 | CRYSTAL 27.1200MHZ 10PF SMD | 27.12 MHz |
| LFXTAL082070RL3K | IQD晶振 | CFPX-180 | CRYSTAL 13.5600MHZ 8PF SMD | 13.56 MHz |
| LFXTAL082074RL3K | IQD晶振 | CFPX-180 | CRYSTAL 27.0000MHZ 8PF SMD | 27 MHz |
| LFXTAL070065RL3K | IQD晶振 | CFPX-180 | CRYSTAL 24.0000MHZ 9PF SMD | 24 MHz |
| LFXTAL082077RL3K | IQD晶振 | CFPX-180 | CRYSTAL 40.0000MHZ 8PF SMD | 40 MHz |
| LFXTAL057997RL3K | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 10PF SMD | 16 MHz |
| LFXTAL082069REEL | IQD晶振 | CFPX-180 | CRYSTAL 12.0000MHZ 8PF SMD | 12 MHz |
| LFXTAL009650RL3K | IQD晶振 | CFPX-180 | CRYSTAL 16.0000MHZ 16PF SMD | 16 MHz |
