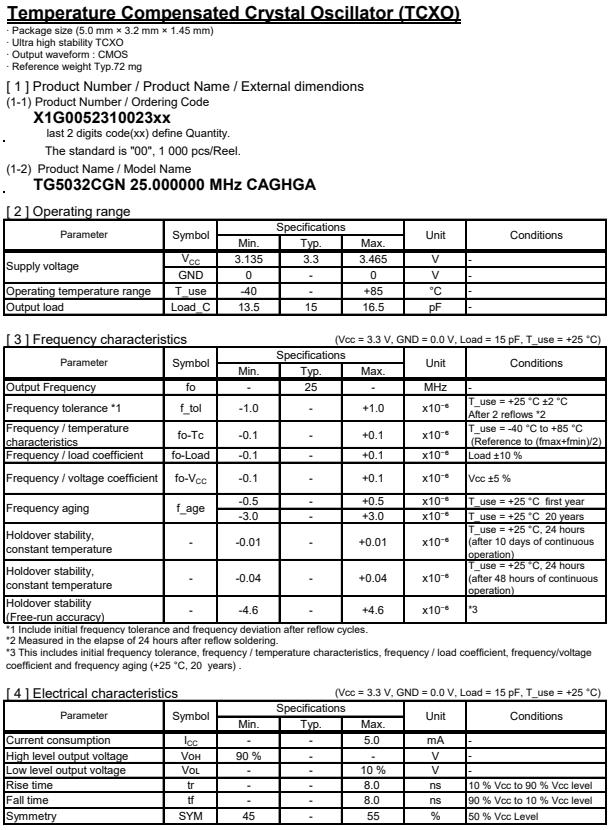

微型的溫補晶振X1G005231002300常常用于藍牙AOA定位，千篇一律不如萬變不離其宗，只有敢于追隨趨勢，而且能夠打破固有的偏見方可在偌大的市場之中，找到新的機會與出口，愛普生公司在晶體行業的專注無人可及，由于在晶體行業深耕幾十年，能夠快速針對當下的市場做出新的調整戰略，于愛普生公司來說這是一個新的挑戰，開發出了新型的溫補晶振，這款TG5032CGN晶振得到市場的認可，編碼X1G005231002300，頻率25.000000兆赫，輸出WaveCMOS，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)5.0 x 3.2 x 1.4 mm，操作溫度-40至++85°C，頻率公差+/- 1.0 ppm。具有低電壓，低相噪的特點，非常適合用于藍牙AOA定位，醫療設備，電子數碼等產品。

微型的溫補晶振X1G005231002300常常用于藍牙AOA定位，愛普生貼片式石英晶振振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,有源晶振產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH / SONET發射基站等領域.符合RoHS/無鉛.

Product Number00	Model	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005231001700	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231001900	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005231002000	TG5032CGN	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002300	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002500	TG5032CGN進口晶振	10.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002600	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002700	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002800	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231002900	TG5032CGN	40.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.25 ppm
X1G005231003000	TG5032CGN	38.880000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231003100	TG5032CGN	38.880000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231003200	TG5032CGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	2.700 to 3.000 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231003300	TG5032CGN	19.200000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231003400	TG5032CGN	20.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005231003500	TG5032CGN	25.000000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005231003600	TG5032CGN	19.440000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
X1G005231003700	TG5032CGN	30.720000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.10 ppm
X1G005231003900	TG5032CGN	24.576000 MHz	5.00 x 3.20 x 1.45 mm	3.135 to 3.465 V	+/-1.0 ppm	-40 to ++85 °C	+/-0.28 ppm
