首頁進口晶振泰藝晶振SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用

SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用

編號：90456077
頻率：27MHZ
尺寸：2.5*2.0mm

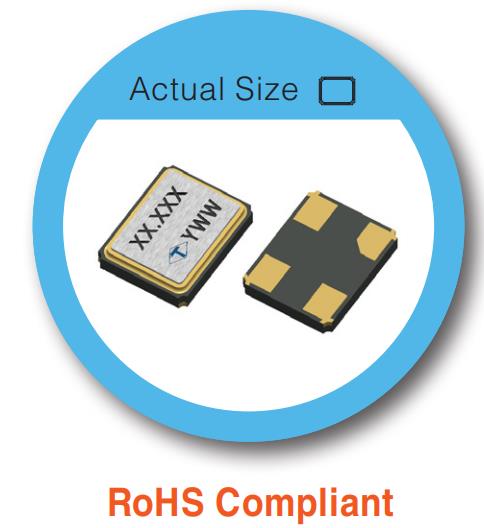

SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用,尺寸為2520mm,頻率為27MHZ，工作溫度-20~70℃,臺灣進口晶振，泰藝晶振，無源晶振，SMD晶體，石英晶體諧振器，無源貼片晶振，貼片石英晶振，水晶振動子，藍牙晶振，移...

SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用,尺寸為2520mm,頻率為27MHZ，工作溫度-20~70℃,臺灣進口晶振，泰藝晶振，無源晶振，SMD晶體，石英晶體諧振器，無源貼片晶振，貼片石英晶振，水晶振動子，藍牙晶振，移動電話晶振，無線局域網專用晶振，辦公自動化晶振，視頻專用晶振，音頻晶振，XYAEECNANF-48.000000石英晶體，XYAEEJNANF-26.000000視頻晶振。
石英晶振產品主要應用范圍：藍牙，移動電話，無線局域網。以及廣泛的辦公自動化，音頻和視頻等領域。SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用.

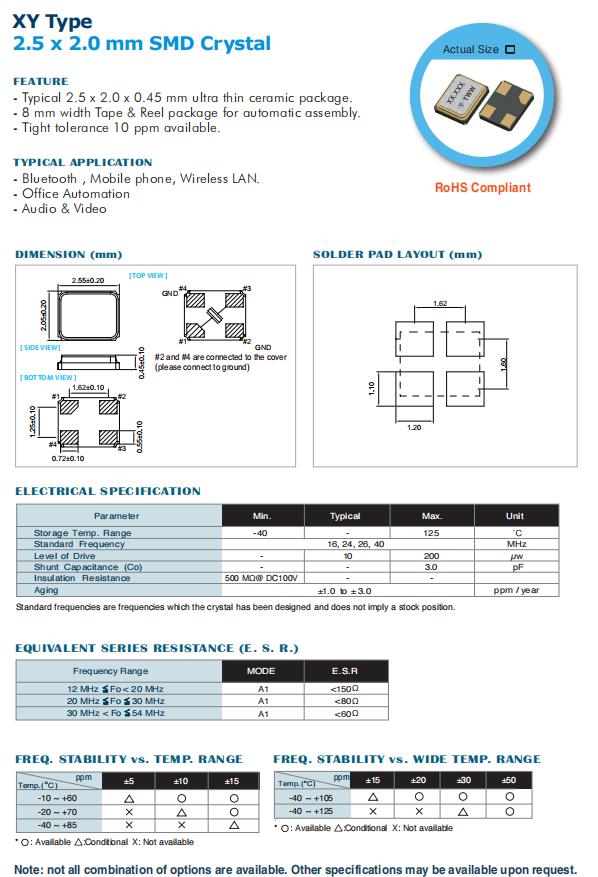

SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用 參數表

參數	Min .	Typical	Max .	Unit
存儲溫度范圍	--40	-	125
標準頻率	16, 24, 26, 40			MHz
驅動級別	-	10	200	µw
并聯電容(Co)	-	-	3.0	F
絕緣電阻	500 M?@ DC100VV	-	-
老化	±1.0 to ±3.0			ppm / year

Frequency Range	MODE	E . S . R
12 MHz Fo < 20 MHz	A1	<150?
20 MHz Fo 30 MHz	A1	<80?
30 MHz < Fo 54 MHz	A1	<60?

XYAEECNANF-27.000000晶振特點

-典型的2.5x2.0x0.45mm超薄陶瓷封裝。

- 8毫米寬的磁帶和卷軸包裝，用于自動組裝。

-緊密公差10ppm可用。

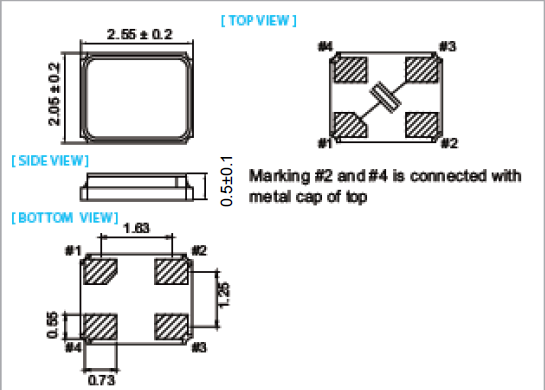

SMD,XYAEECNANF-27.000000,27MHZ,2520mm,視頻專用 尺寸圖

更多相關臺灣泰藝晶振型號

原廠編碼	廠家	型號	系列	頻率	工作溫度
XYIGGLNANF-16.000000	Taitien	XY	MHz Crystal	16MHz	-20°C ~ 70°C
XYCBBCNANF-16.000000	Taitien	XY	MHz Crystal	16MHz	-20°C ~ 70°C
XYCBBCNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-20°C ~ 70°C
XYCCCCNANF-19.200000	Taitien	XY	MHz Crystal	19.2MHz	-20°C ~ 70°C
XYCEECNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-20°C ~ 70°C
XYCEECNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-20°C ~ 70°C
XYHEECNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-20°C ~ 70°C
XYLEEJNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-40°C ~ 105°C
XYABBCNANF-24.576000	Taitien	XY	MHz Crystal	24.576MHz	-20°C ~ 70°C
XYAEECNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-20°C ~ 70°C
XYAEECNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-20°C ~ 70°C
XYAEECNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-20°C ~ 70°C
XYAEECNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-20°C ~ 70°C
XYAEECNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-20°C ~ 70°C
XYAEECNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-20°C ~ 70°C
XYAEECNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-20°C ~ 70°C
XYAEEJNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-40°C ~ 105°C
XYAEEJNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-40°C ~ 105°C
XYAEEJNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-40°C ~ 105°C
XYAEEJNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-40°C ~ 105°C
XYAEELNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-40°C ~ 85°C
XYAEELNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-40°C ~ 85°C
XYAEELNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-40°C ~ 85°C
XYAEELNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-40°C ~ 85°C
XYAEELNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-40°C ~ 85°C
XYAEELNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-40°C ~ 85°C
XYAEELNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-40°C ~ 85°C
XYLEECNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-20°C ~ 70°C
XYLEECNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-20°C ~ 70°C
XYLEECNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-20°C ~ 70°C
XYLEECNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-20°C ~ 70°C
XYLEECNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-20°C ~ 70°C
XYLEECNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-20°C ~ 70°C
XYLEECNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-20°C ~ 70°C
XYLEEJNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-40°C ~ 105°C
XYLEEJNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-40°C ~ 105°C
XYLEEJNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-40°C ~ 105°C
XYLEEJNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-40°C ~ 105°C
XYLEEJNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-40°C ~ 105°C
XYLEEJNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-40°C ~ 105°C
XYLEELNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-40°C ~ 85°C
XYLEELNANF-27.000000	Taitien	XY	MHz Crystal	27MHz	-40°C ~ 85°C
XYLEELNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-40°C ~ 85°C
XYLEELNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-40°C ~ 85°C
XYLEELNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-40°C ~ 85°C
XYLEELNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-40°C ~ 85°C
XYLEELNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-40°C ~ 85°C
XYLEELNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-40°C ~ 85°C
XYLEELNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-40°C ~ 85°C
XYCBBINANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-10°C ~ 60°C
XYFBBCNANF-20.000000	Taitien	XY	MHz Crystal	20MHz	-20°C ~ 70°C
XYDBPLNANF-40.000000	Taitien	XY	MHz Crystal	40MHz	-40°C ~ 85°C
XYGBCLNANF-24.000000	Taitien	XY	MHz Crystal	24MHz	-20°C ~ 70°C
XYBBDLSANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-40°C ~ 85°C
XYAEELNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-40°C ~ 85°C
XYLEECNANF-27.120000	Taitien石英貼片晶振	XY	MHz Crystal	27.12MHz	-20°C ~ 70°C
XYAEEJNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-40°C ~ 105°C
XYFEECNANF-24.000000	Taitien	XY	MHz Crystal	24MHz	-20°C ~ 70°C
XYLEECNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-20°C ~ 70°C
XYAEECNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-20°C ~ 70°C
XYABBCNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-20°C ~ 70°C
XYAEECNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-20°C ~ 70°C
XYLEEJNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-40°C ~ 105°C
XYAEEJNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-40°C ~ 105°C
XYAEELNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-40°C ~ 85°C
XYAEEJNANF-27.120000	Taitien	XY	MHz Crystal	27.12MHz	-40°C ~ 105°C
XYAEEJNANF-50.000000	Taitien	XY	MHz Crystal	50MHz	-40°C ~ 105°C
XYBBBCNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-20°C ~ 70°C
XYAEEJNANF-38.400000	Taitien	XY	MHz Crystal	38.4MHz	-40°C ~ 105°C
XYCBBCNANF-20.000000	Taitien	XY	MHz Crystal	20MHz	-20°C ~ 70°C
XYABBCNANF-16.000000	Taitien	XY	MHz Crystal	16MHz	-20°C ~ 70°C
XYABBCNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-20°C ~ 70°C
XYACELNANF-16.000000	Taitien	XY	MHz Crystal	16MHz	-40°C ~ 85°C
XYAGCLNANF-26.000000	Taitien	XY	MHz Crystal	26MHz	-40°C ~ 85°C
XYCBBCNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-20°C ~ 70°C
XYCBCLNANF-32.000000	Taitien	XY	MHz Crystal	32MHz	-40°C ~ 85°C
XYCCCCNANF-25.000000	Taitien	XY	MHz Crystal	25MHz	-20°C ~ 70°C
XYDEECNANF-24.000000	Taitien	XY	MHz Crystal	24MHz	-20°C ~ 70°C
XYGEECNANF-25.000000	Taitien	XY	MHz Crystal	25MHz	-20°C ~ 70°C
XYGEGLNANF-25.000000	Taitien	XY	MHz Crystal	25MHz	-40°C ~ 85°C
XYHCCCNANF-30.000000	Taitien	XY	MHz Crystal	30MHz	-20°C ~ 70°C
XYHEELNANF-20.000000	Taitien	XY	MHz Crystal	20MHz	-40°C ~ 85°C
XYLEEJNANF-48.000000	Taitien	XY	MHz Crystal	48MHz	-40°C ~ 105°C
